3D Visualizing – Fine-blanking

This more complex geometry represents a fine blanking die in simplified form. Not only images were rendered from different angles, but also a short animated sequence was needed to show the punching process.


→ Client: NOSUN GmbH, Graz
→ Discipline: 3D Visualizing

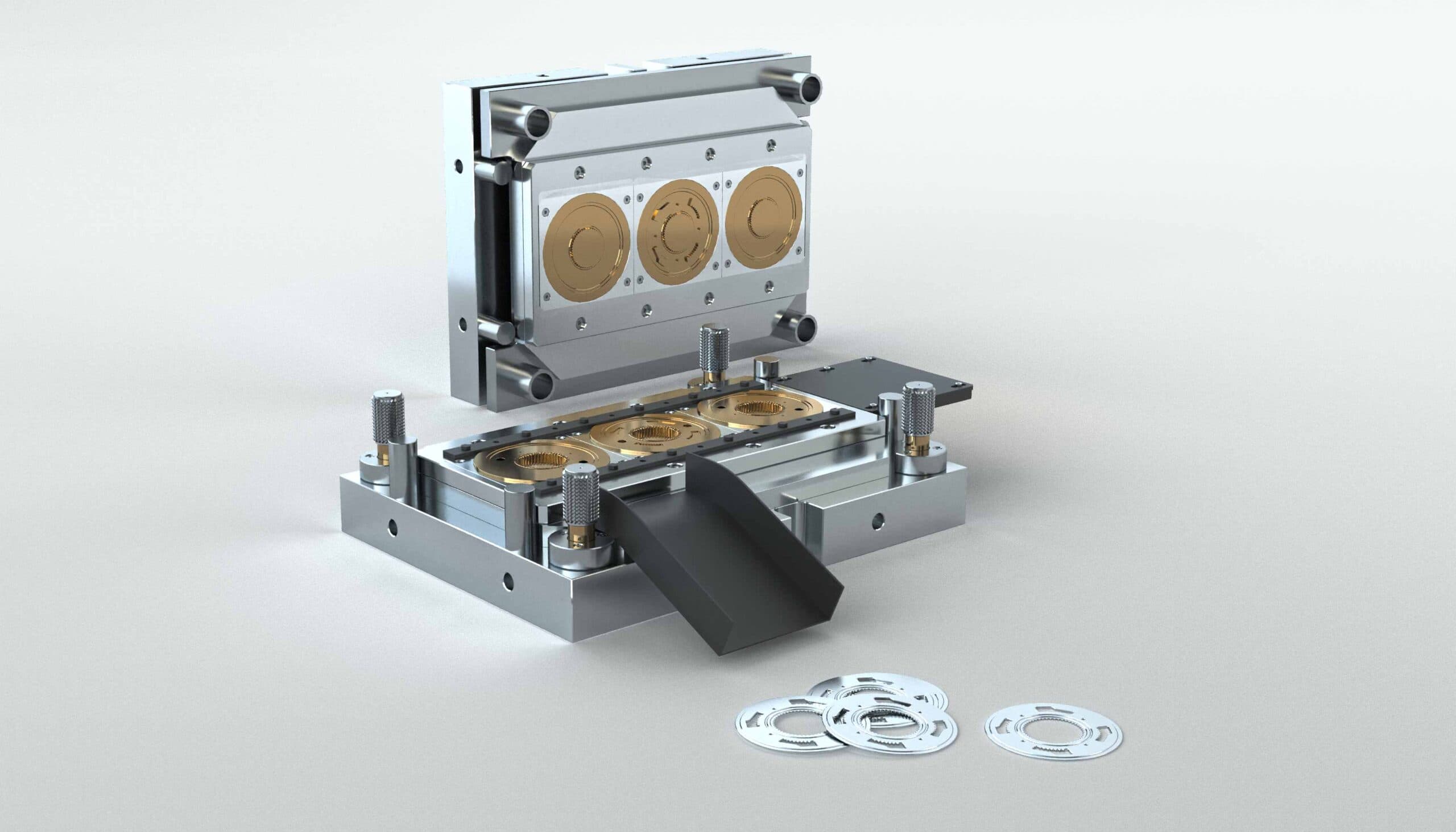

Fineblanking tool
Lower tool block

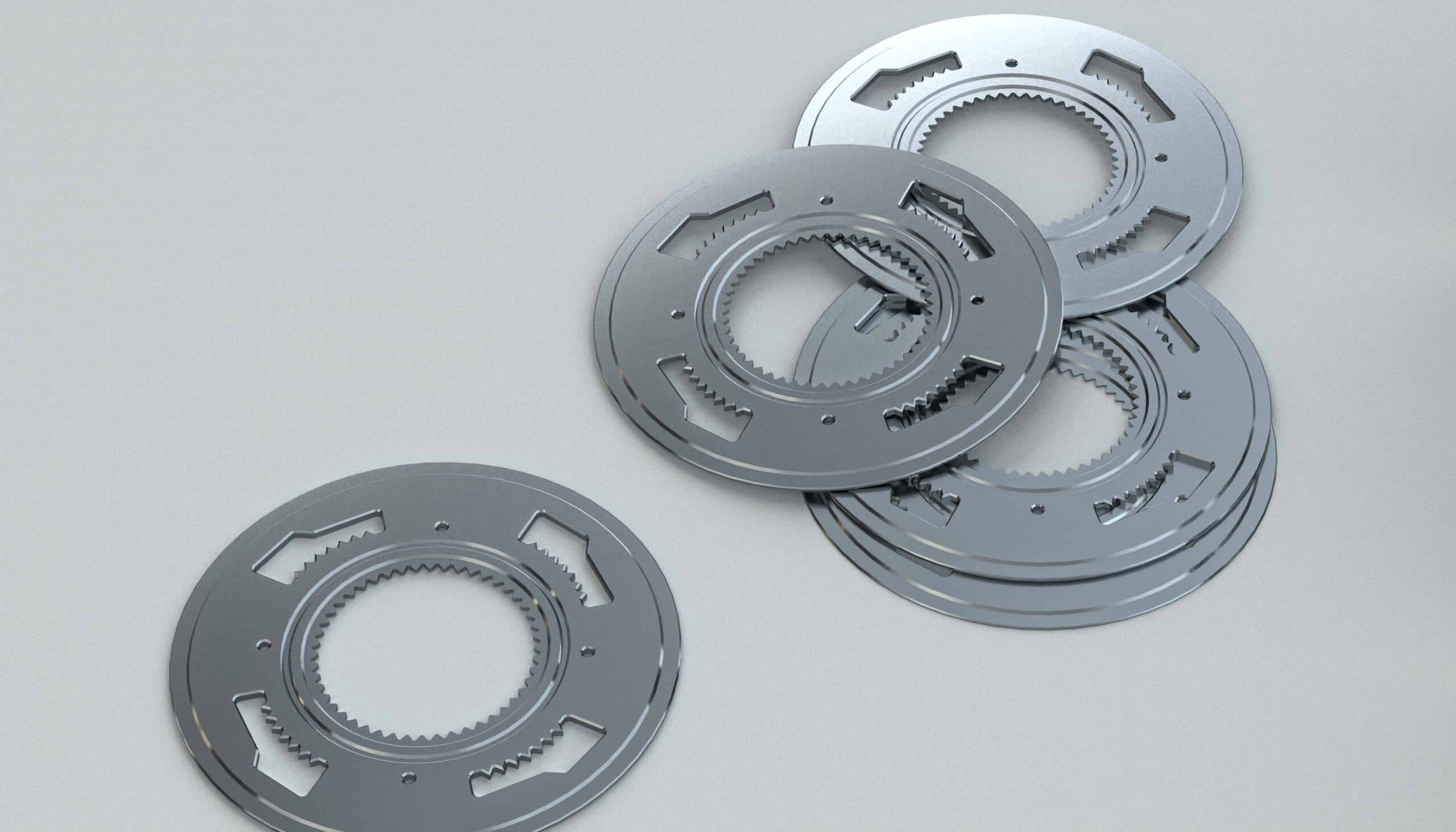

Generic sprockets
